products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Rubber Vulcanizing Press Machine
Created with Pixso.

XLB-600×600×2 Double-platen Rubber Vulcanizing Press with 1.00 MN Total Pressure and 125mm Daylight

Name

XLB-600×600×2 Double-platen Rubber Vulcanizing Press with 1.00 MN Total Pressure and 125mm Daylight

Brand Name: SFC
Model Number: XLB-600×600×1
MOQ: 1 Set
Price: 5000-6000 USD per Set
Payment Terms: L/C,T/T
Supply Ability: 15 Sets per Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015/CE/SGS
Total Pressure(MN):
1.00
Dayloigh(mm):
125
Working Layer:
1
Main Motor Power(KW):
2.2
Control Type:
CNC
Warranty:
1 Years
Mode Of Production:
Support Customization
Size (L×W×H) (mm):
1880×720×1680
Packaging Details:
Wooden Case
Supply Ability:
15 Sets per Month
Highlight:

600×600×2 Rubber Vulcanizing Press

,

1.00 MN Total Pressure Vulcanizing Machine

,

125mm Daylight Hydraulic Vulcanizing Press

Product Description
XLB-600×600×2 Double-platen Rubber Vulcanizing Machine
High Efficiency Flat Vulcanizing Press
Uniform vulcanization with precise temperature control for consistent rubber product quality.
Product Specifications
Attribute Value
Total Pressure (MN) 1.00
Daylight (mm) 125
Working Layer 1
Main Motor Power (KW) 2.2
Control Type CNC
Warranty 1 year
Mode Of Production Support Customization
Size (L*W*H) (mm) 1880*720*1680
Product Introduction
  • Designed for pressing rubber model products, rubber plates, and thermosetting plastics
  • Functions as a versatile hydraulic machine for various industrial applications
  • Robust frame/column type construction with top crossing, plate, table, piston, and hydraulic cylinder components
  • Slow moving speed ensures safer operation and more accurate alignment
  • Precise mold positioning with 100% safety design to prevent damage
  • Adjustable mold opening/closing speed for enhanced accuracy and reliability

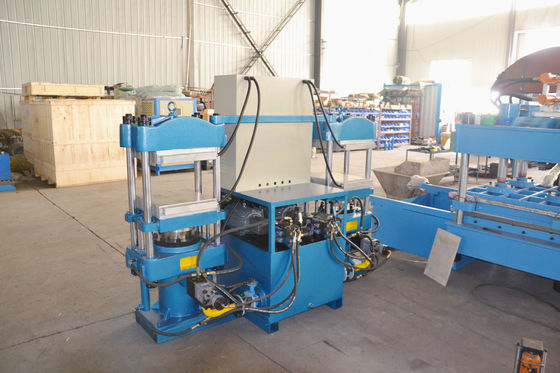

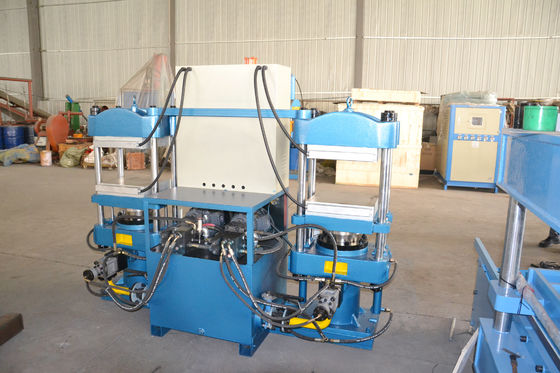

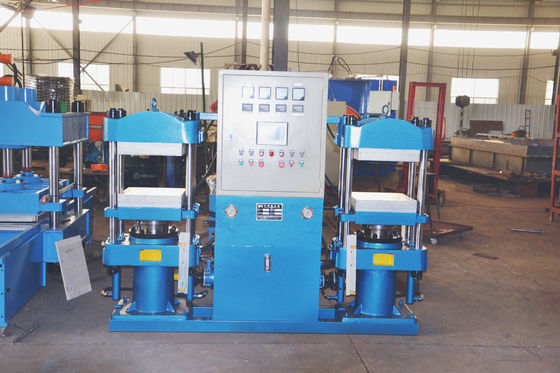

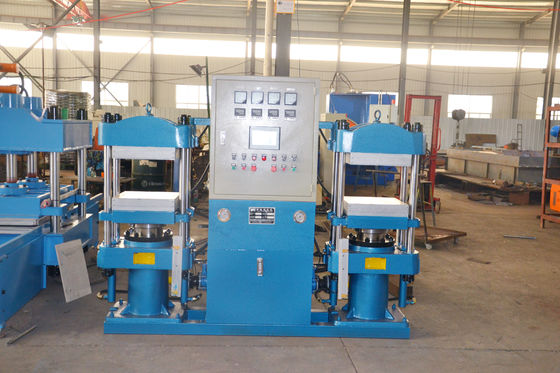

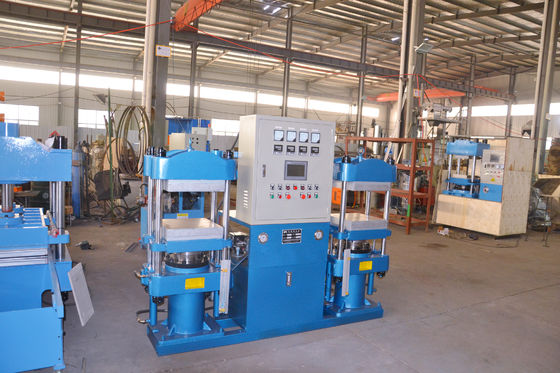

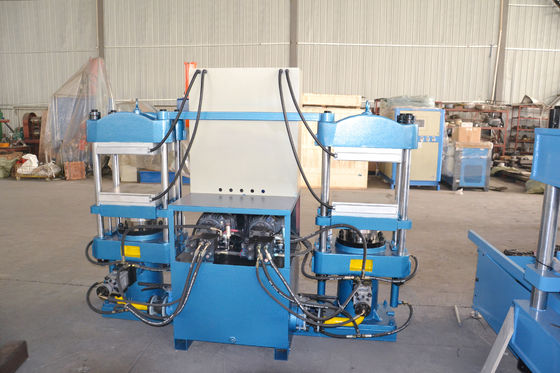

Product Images
XLB-600×600×2 Double-platen Rubber Vulcanizing Press with 1.00 MN Total Pressure and 125mm Daylight 0 XLB-600×600×2 Double-platen Rubber Vulcanizing Press with 1.00 MN Total Pressure and 125mm Daylight 1 XLB-600×600×2 Double-platen Rubber Vulcanizing Press with 1.00 MN Total Pressure and 125mm Daylight 2
Model Comparison
Model XLB-400*400*1/4 XLB-500*500*1/4 XLB-600*600*1/4 XLB-900*900*1/4 XLB-1100*1100*1/2 XLB-1200*1200*1/2
Total pressure (MN) 0.5 0.63 1.00 2.00 1.20 3.15
Daylight (mm) 125 125 125 300 150 200
Platen Layers 1-4 1-4 1-4 1-4 1-2 1-2
Unit area pressure of hot plate (Mpa) 3.13 2.52 2.77 2.47 1 2.19
Piston stroke (mm) 250 250 250/400 400 300 400
Heating mode Electricity/Stream Electricity/Stream Electricity/Stream Stream Electricity Electricity
Main motor power (KW) 2.2 2.2 2.2 5.5 3 3
Size (L*W*H) (mm) 1600*500*1480 1750*600*1540 1880*720*1680 1400*900*2400 1150x3500x1650 1685*1320*2450
Our Service
  • Custom machine design with drawings for customer confirmation
  • Production progress photos provided during manufacturing
  • Complete documentation including packing list, commercial invoice, and bill of lading
  • Free technical documents: foundation DWG, installation drawing, user guide, maintenance manual
Frequently Asked Questions
What does your factory do regarding quality control?
We implement strict quality control throughout production. Every machine is fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
One year warranty. We use world-famous brand components to ensure optimal machine performance.
Are you able to give installation and commissioning overseas?
Yes, we provide overseas service and technical support (customer covers installation costs). Small machines take 2-3 days, production lines about 30 days.
